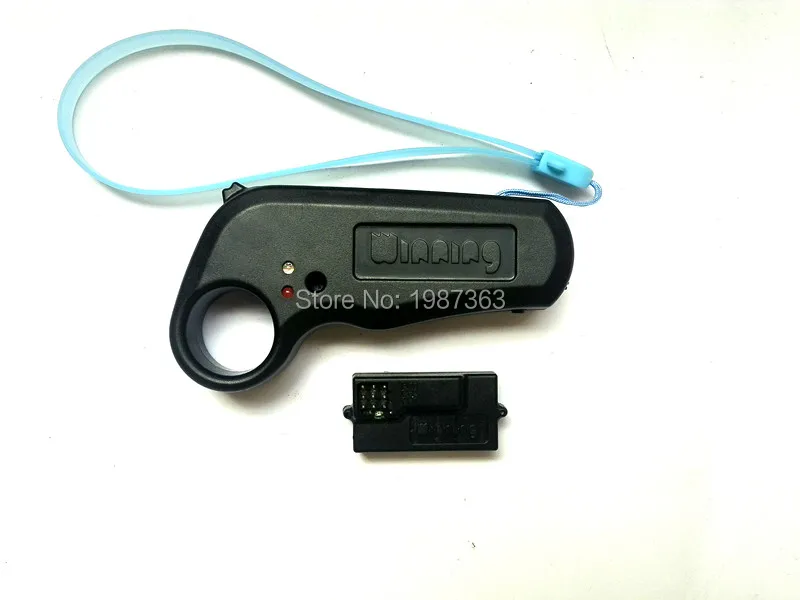

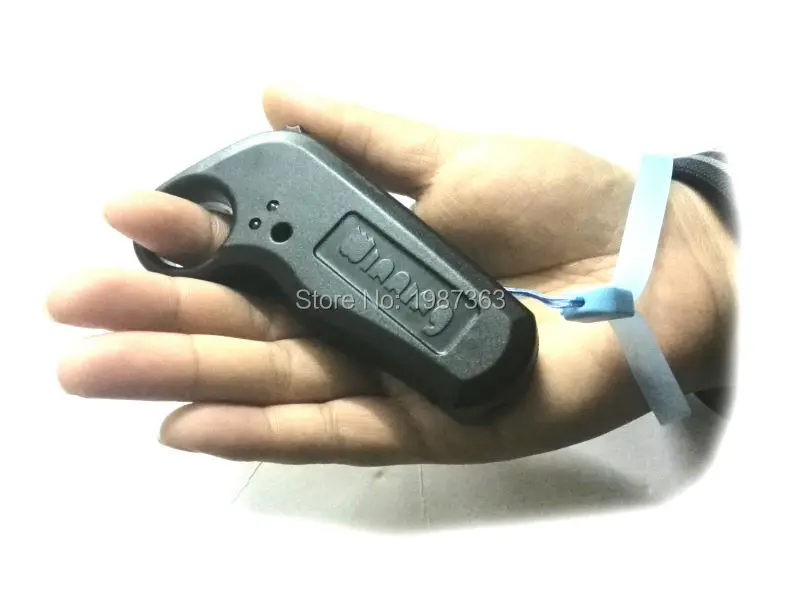

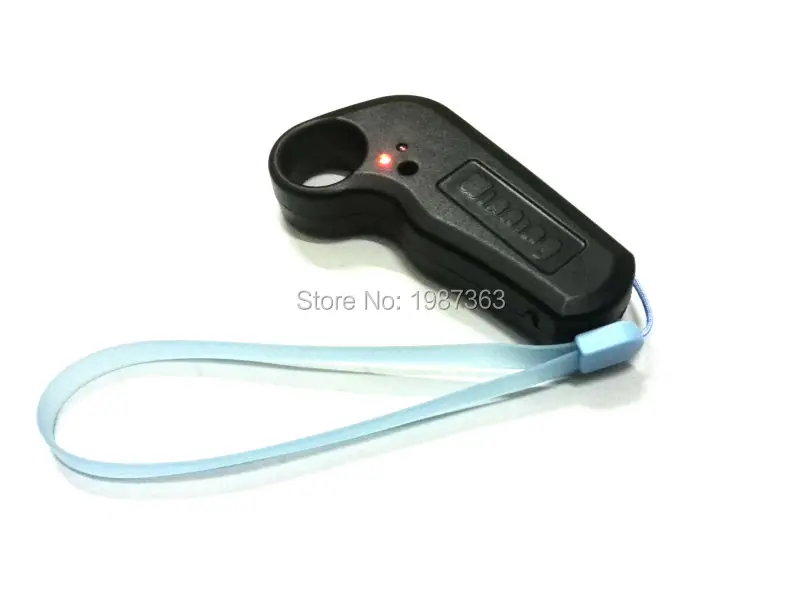

New arrival 2.4Ghz mini remote controller with receiver for electric skateboard longboard
Notice:There are some upgrade on this remote,according to customer’s suggestion:
1.we remove the logo from the case,so there will not have the letter”winning”;
2.increase the throttle range about 15%;
3.add an extra antenna inside to strengthen the signal.
4.Better quality lithium battery.

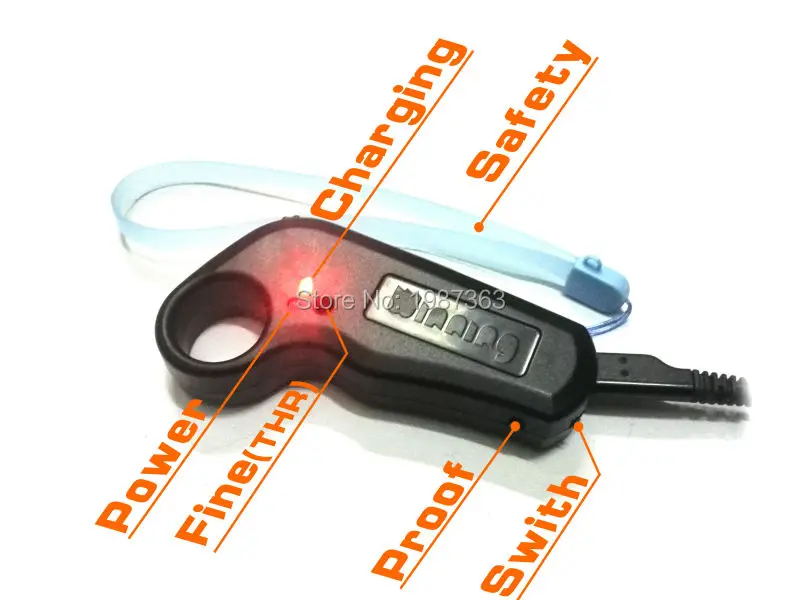

Mini Remote Controller 2.4Ghz
Weight: 48g
Size:100x52x20mm
Frequency: 2.4G

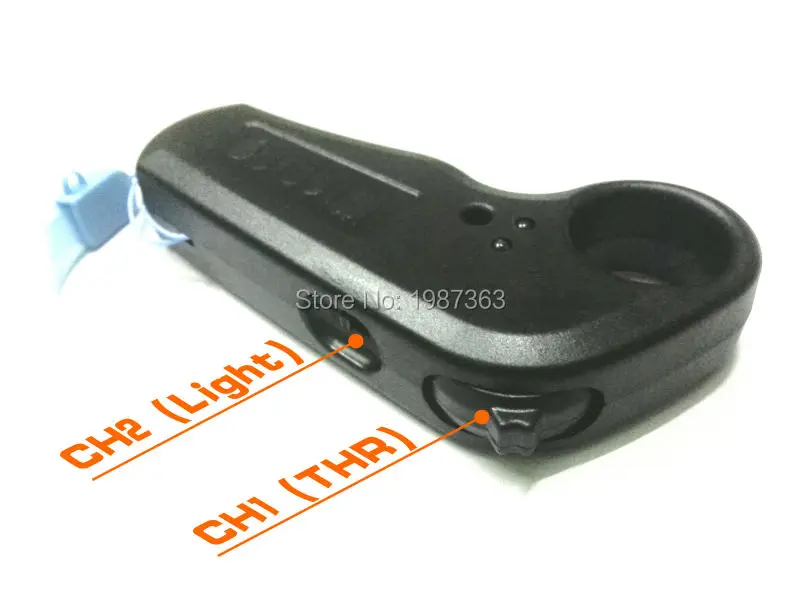

Channel: 2 channels (throttle and LED light)
Application of ESC: All ESC
Color: Black
Power:Li-po 3.7v 500mAh(included)
<font face=”Arial, Helvetica, sans-senif, SimSun, <font face=”Arial, Helvetica, sans-senif, SimSun, Suitable for : Electric skateboard longbaord
USB Charge spot (USB line do not inclueded,as it is suitable for normal USB line)
Note:No retail box.
Package Included:
1x mini remote
1x receiver
1x manual
Attention:As the paper manual is not clear for the bind procedure,pleae refer to the instruction below here)
How to bind the transmitter to the receiver?

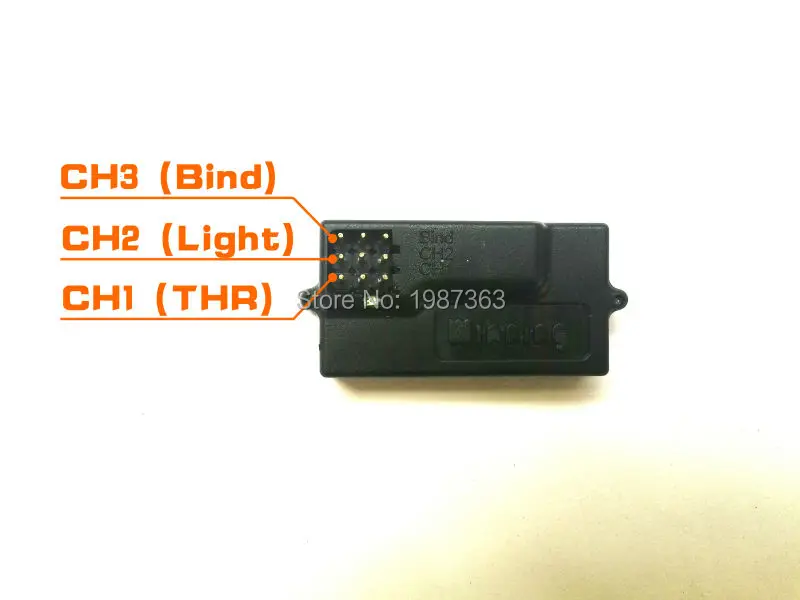

1).Check and make sure all the wires are mounted,and the remote is CLOSED,insert the bind plug into CH3(Bind) on the receiver;
2).Switch on the ESC,you can see the receiver red light flash;
3).Press and hold on the bind button on the remote and then turn the remote on;
4).You should notice the transimitter go from flashing red to solid red,and also the solid red of the receiver;
5).Once you see a solid red light, you now know the two are binded together,and please pull the bind plug out (this is important,so the remote can record the throttle mid to realize the fail safe)
6).Then you can test it again by turning off the controller and it should flash.if you turn the power on Transmitter back on it should go back to solid red.
Before running,it’s better to test the fail safe fuction by closing the remote,if the motor didn’t move,so the fail safe fuction is in good condition,when you find the motor is moving,you have to repeat the step No.1- No.6 above
Noticed:
For the shipping
1.EMS, DHL, FEDEX, UPS are available with discount.
2.Your order will be shipped out in three days and all shipment will have a Tracking Number.
3.You will get your goods within 20-60 days by post(epacket,PostNL,etc),7-15 days by fast shipping(DHL.UPS,FEDEX,etc),the delivery time depends on the country delivered to, please wait for your package patiently.
4.For some country,the parcel sent by post,buyer need to contact the post office for the delivery when the parcel arrived in destination country.
5.In order to ensure you receive your order with tax free,or save some tax,will declare the goods with a lower value,theis lower price does not reflect the total price you paid or the market value of the product and may not apply to countries with different tariff rules.
6.The price dosed not include insurance and any taxes of import country,any import chargesd or fees are buyer’s responsibillity,thanks for your understanding.

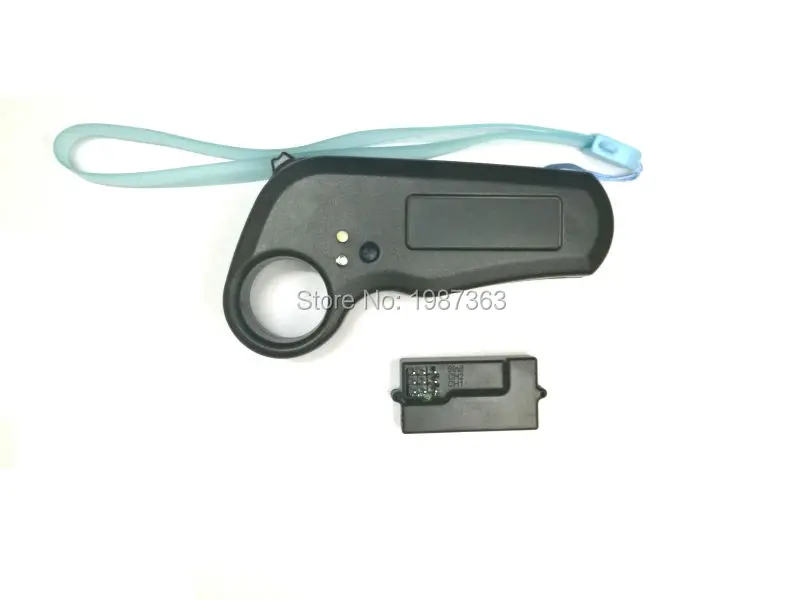

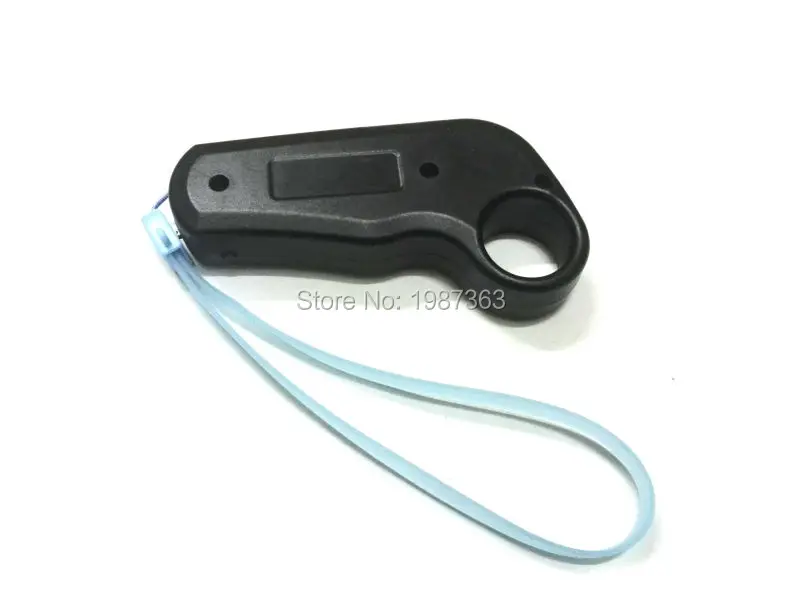

The remote case without LOGO as below picture:
![]()
![]()
![]()
![]()
![]()
